Rega Aria MM/MC MK3 Phono-Vorverstärker

Rega Aria MM/MC Phono-Vorverstärker

Housed within our latest half width custom designed case are two entirely separate, high performance phono stages. One fully adjustable, dedicated moving coil and one moving magnet. Each stage is designed and engineered to maximise the potential of your vinyl system whilst remaining easy to use and set up.

Technology
The Aria is an "all analogue amplifier" with no digital control circuitry. The fully aluminium case screens the internal circuit from any stray RFI signals. Our designers have avoided including any superfluous gadgets as they obstruct the signal path and degrade the sound quality. The Aria incorporates many innovative design ideas including a self-adjusting servo control to keep the MC input circuit at its optimum, compensating for any variations in ambient or operating temperature.

Both stages have their own separate input sockets and input pre-amplifier circuitry. This enabled us to design bespoke input circuitry for each cartridge type without compromise. Signal switching is performed at high level and low impedance (via relays) ensuring there is no degradation of the signal.

MC Stage Design & Features

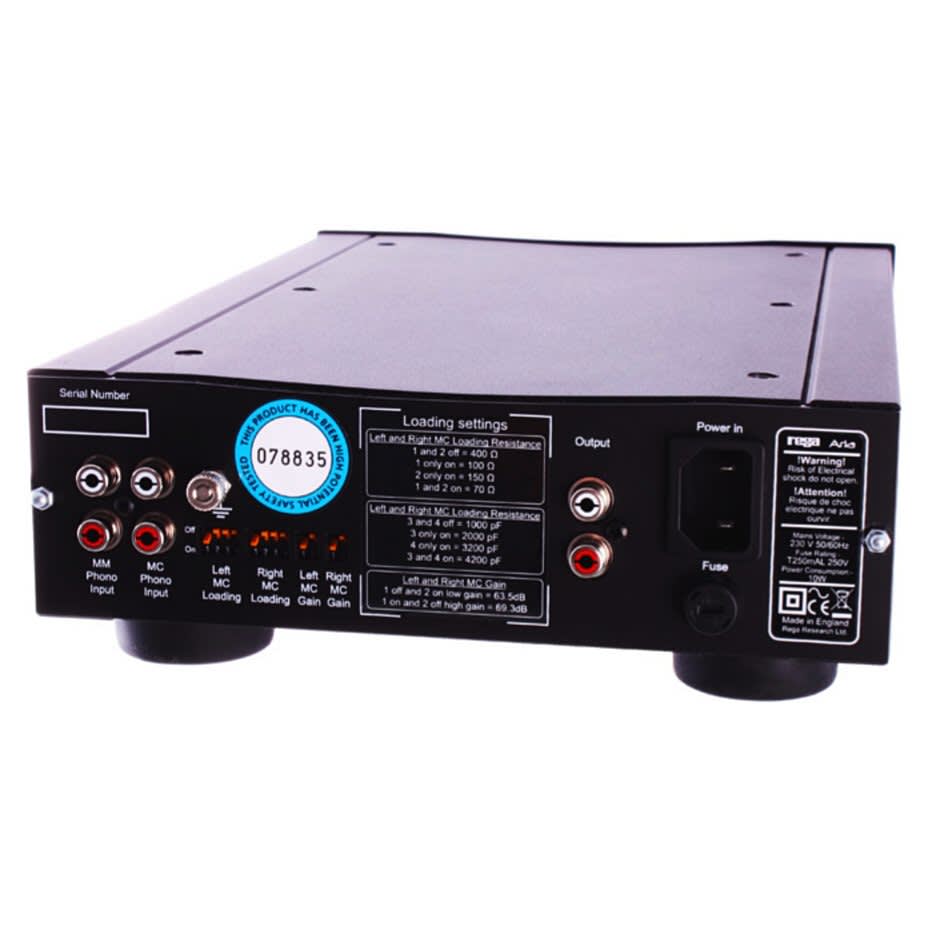

The MC input uses parallel connected, low noise FET's (Field Effect Transistor's) configured as a compound pair. The use of FET transistors ensures there is no bias current flowing in the cartridge coil so as not to upset the delicate magnetic geometry of the cartridge. The MC input has the provision for selecting resistive input loading of 70ohms to 400ohms and capacitive loading of 1000pF to 4200pF. The input sensitivity can be changed by 6dB via the back panel.

MM Stage design & features
The MM input uses low noise, bipolar input transistors also configured as a compound pair. There are two separate power supplies for each channel and further sub-power supplies for each of the low noise input circuits. Nichicon FG electrolytic capacitors have been used in critical positions throughout the power supplies. Polypropylene capacitors have been used in the signal path and equalization networks. Discrete circuitry is used throughout the signal path ensuring full control of the circuit design.

TECHNICAL SPECIFICATIONS:

• Maximaler Ausgangspegel = 11v RMS
• Nennausgangspegel = 200mV
• Ausgangswiderstand = 100 Ohm
• Minimaler Ausgangswiderstand für einen -3dB-Punkt bei 15Hz = 1K
• Wechselstromversorgung 230V & 115V Nominal +/- 10%
• 230V 20mm Sicherung T250mAL
• 115V 20mm Sicherung T500mAL
• Leistungsaufnahme = 10 Watt
• Betriebsumgebungstemperatur 5 bis 35°C
• Abmessungen: B 220mm x T 320mm x H 80mm

MC Input:
Generator source resistance = 15O.
Loading set to 100 Ohm and 4200 pF.
Input sensitivity (0 dB high gain setting) = 70 uV for 200 mV output. Input sensitivity (-6dB low gain setting) = 133 uV for 200mV output. Resistive Input loading = 70, 100, 150 & 400Ohm.
Resistive Input loading = 70, 100, 150 & 400O.
Capacitive Input loading = 1000, 2000, 3200 & 4200pF.
Maximum input level (0dB high gain setting) = 5.1mV at 1KHz.
Maximum input level (-6dB high gain setting) = 10mV at 1KHz.
Gain (0dB high gain setting) = 69.3dB at 1KHz.
Gain (-6dB low gain setting) = 63.5dB at 1KHz.
Frequency response (100KOhm output load) = 13 Hz (-3 dB) to 70KHz (-0.2 dB).
RIAA accuracy (100 KOhm output load) = better than +/-0.2 dB 70Hz to 70 KHz.
THD+Noise(-6 dB low gain setting) = typically 0.035 % at 1V Bandwidth 100 Hz to 22 KHz.
Noise (15 Ohm terminator and -6 dB low gain setting) = typically –71 dBV un-weighted 100 Hz to 22 KHz.
Signal to noise ratio (un-weighted 100 Hz-22 KHz bandwidth and 0dB high gain setting) = -67 dB using 1KHz 5cm/sec track on the HFS69 test record and Apheta cartridge fitted to a RP8 turntable.

MM Input:

• Generator source resistance = 40O.

• Input sensitivity = 1.7mV for 200mV output.

• Input loading = 47K in parallel with 100pF.

• Maximum input level = 93mV at 1KHz.

• Gain = 41.4dB at 1KHz.

• Frequency response (100KO output load) = 15Hz (-3dB) to 100KHz (-0.2dB).

• RIAA accuracy (100KO output load) = better than +/-0.2dB 100Hz to 100KHz.

• THD+Noise = typically 0.005% at 1V Bandwidth 100Hz to 22KHz.

• Noise (150O terminator on input) = typically –86dBV un-weighted 100Hz to 22KHz.

  Input Impedance:

• 47kOhm parallel with 100pF

  Other:

• version: black

• Dimensions: W 22,0 cm, D 31,5 cm, H 8,0 cm

• Weight: 4.4 kg
