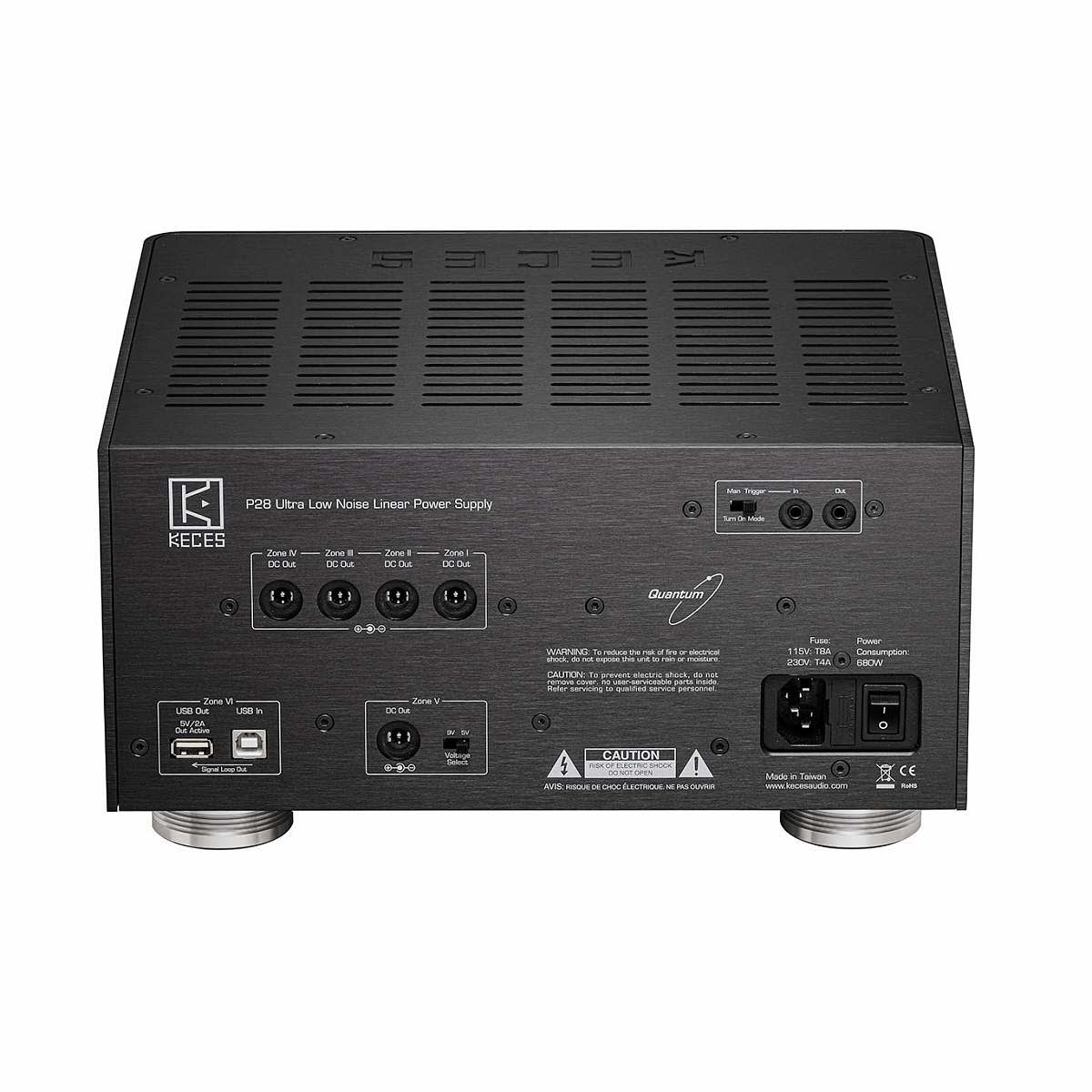

Keces P28 DC Ultra Low Noise Linear Power Supply
kece-p28
Unterteilung in 6 Zonen mit div. wählbaren Spannungen
Keces Audio
3-5 days
Price:
€ 2.800,00 *
(Price quotation / Set)
Audiophiles HiFi Reference power supply unit: The Keces P28, 28A - ultra-low noise linear power supply unit
The advantages of the HiFi power supply Keces P28
- 6 outputs
- Selectable voltages
- Reference power supply,
- USB filter,
- Schuhmann generator,
- High Quality Toroidal Transformer provide pure power.
- Separate ground for each output rail.
- Ultra low ripple noise.
- No humming or buzz noise for 50Hz and peak load.
- Newly designed the Circuit that do not use any ICs. It is truly Analog design.
- Quantum Resonance technology "that provides a subtle field that makes all electromechanical components resonate in unison to improve
- coherence and timing."
- There are 6 zone and each zone are separated.
- USB Isolator for audiophile grade systems. PCM support up to 24Bit/96kHz. DSD support to DSD64.
- New in-house Audio Grade foot cone.
The HiFi Reference Power Supply Keces P28 Mono DC with Rinker Transformer and its Technical Data
Output Voltage and Current
Zone I: 5V/7V/9V/12V, 4A.
Zone II: 12V/15V/19V/24V, 4A.
Zone III: 12V/15V/19V/24V, 6A.
Zone IV: 12V/15V, 10A.
Zone V: 5V/9V, 2A.
Zone VI: USB 5V, 2A.
Ripple Noise:
<100uV at full power
<10uV at 60% load
Casing:
All Aluminum
Dimension (WxDxH)
300x279x133mm
Weight:
14 KG
