In-Akustik Referenz Power Station AC-4500

in-akustik Referenz Power Station AC-4500P

The Power Station AC-4500 is available in a basic version with one filter for all 6 cans, up to the full version with 6 filters. In this configuration, a separate filter is available for each can. Besides the number of filters, the configurations differ in the composition of filter types I & II.

The housing.

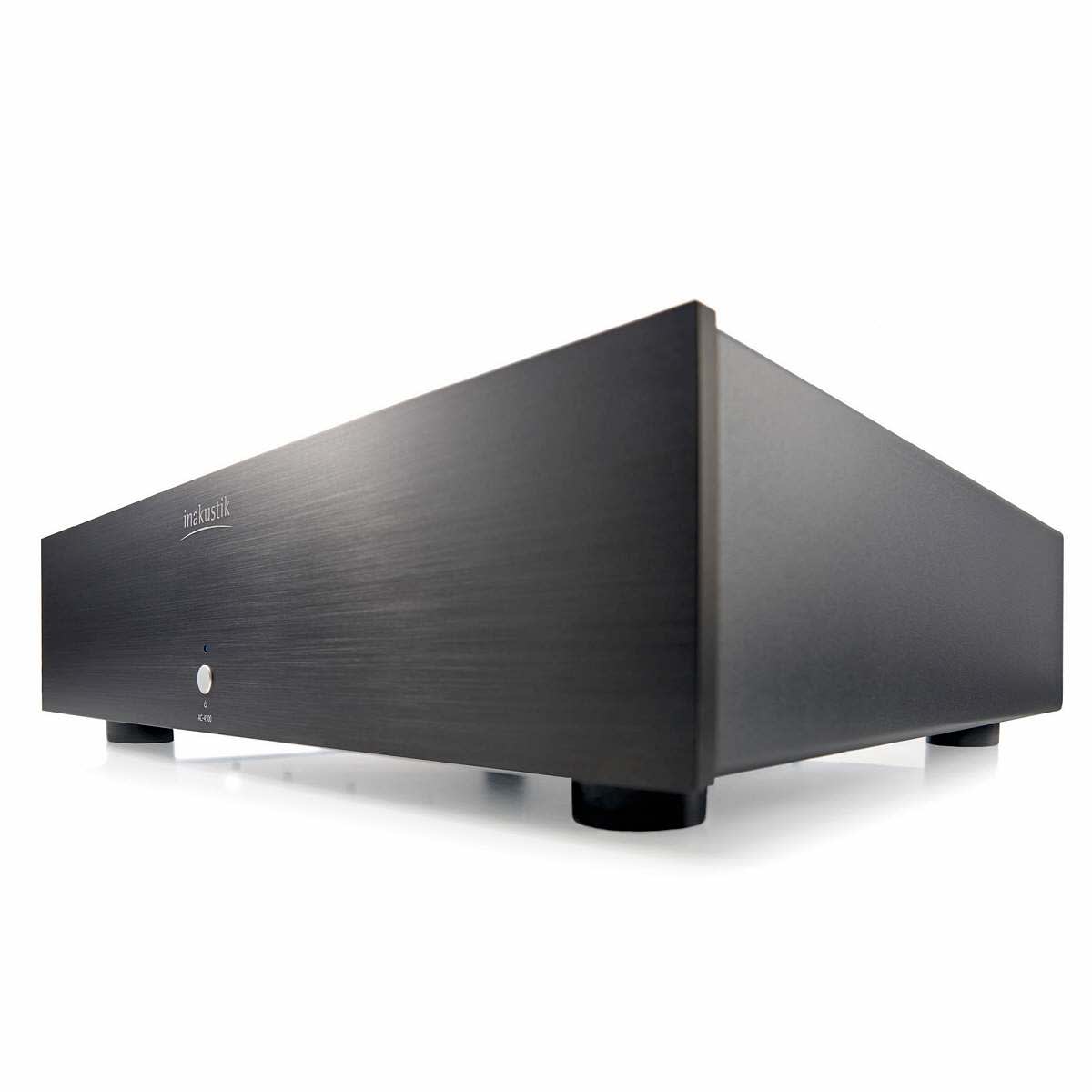

The sensitive technology of the Power Station is housed in a solid metal casing made of 2mm thick galvanised sheet steel. The elegant-looking front panel is made of brushed aluminium.

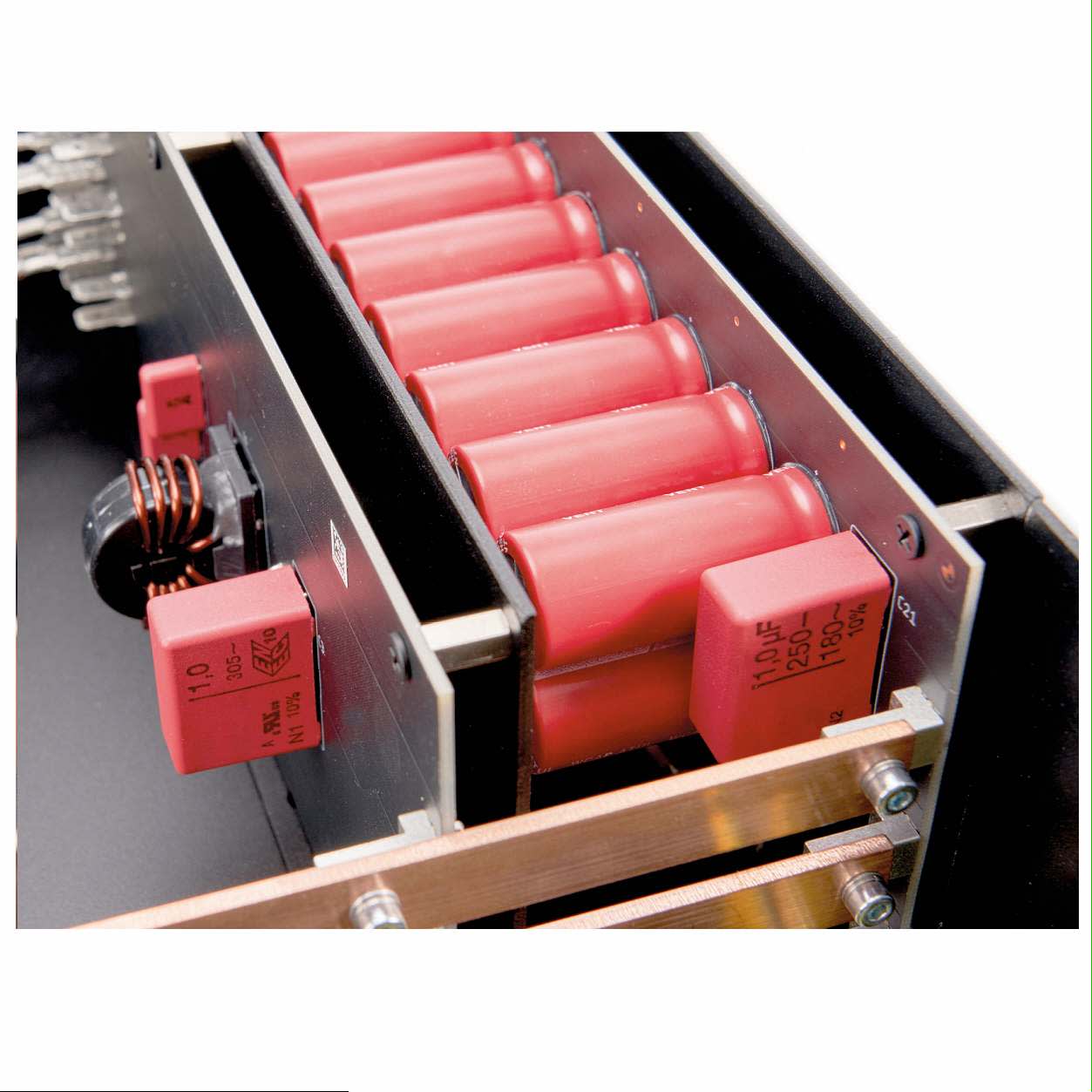

In addition, the interior of the housing is designed in such a way that the individual groups of sockets are shielded from each other and the interference caused by the connected devices themselves cannot spread.

OVERVOLTAGE PROTECTION
In order to protect the reference AC-4500 Power Station as well as the connected devices from extreme voltage peaks (e.g. caused by poorly suppressed household appliances, building services, machinery and atmospheric disturbances), it has an overvoltage protection.

In contrast to conventional concepts, the Power Station AC-4500 uses an additional so-called gas discharge pill. Overvoltages (transients) that occur repeatedly can damage or even destroy standard components over time. As a result, the overvoltage protection could be impaired or even fail completely. The gas discharge pill of the Power Station AC-4500
absorbs a large part of the energy peak and ensures long-lasting and reliable surge protection.

BEISPIELE FILTER TYP I “ANALOG”

• Integrated amplifier Class A/B
• Preamplifier
• Power Amplifier Class A/B
• Tube integrated amplifier
• Power Amplifier Tube
• Phono preamplifier
• Tape recorder
• Record player

BEISPIELE FILTER TYP I “DIGITAL”

• Class D integrated amplifier
• Class D power amplifier
• Streaming player
• DAC
• CD player
• CD Drive
• Network Components
• TV

FEATURES der Referenz Power Station AC-4500P

• Filter type I for analogue devices
• Filter type II for digital units
• DC suppression
• High-quality sockets
• Copper busbars
• Metal housing
• Separately shielded socket groups
• Brushed aluminium front panel
• All-pole mains isolation
• Overvoltage protection
• CE compliant

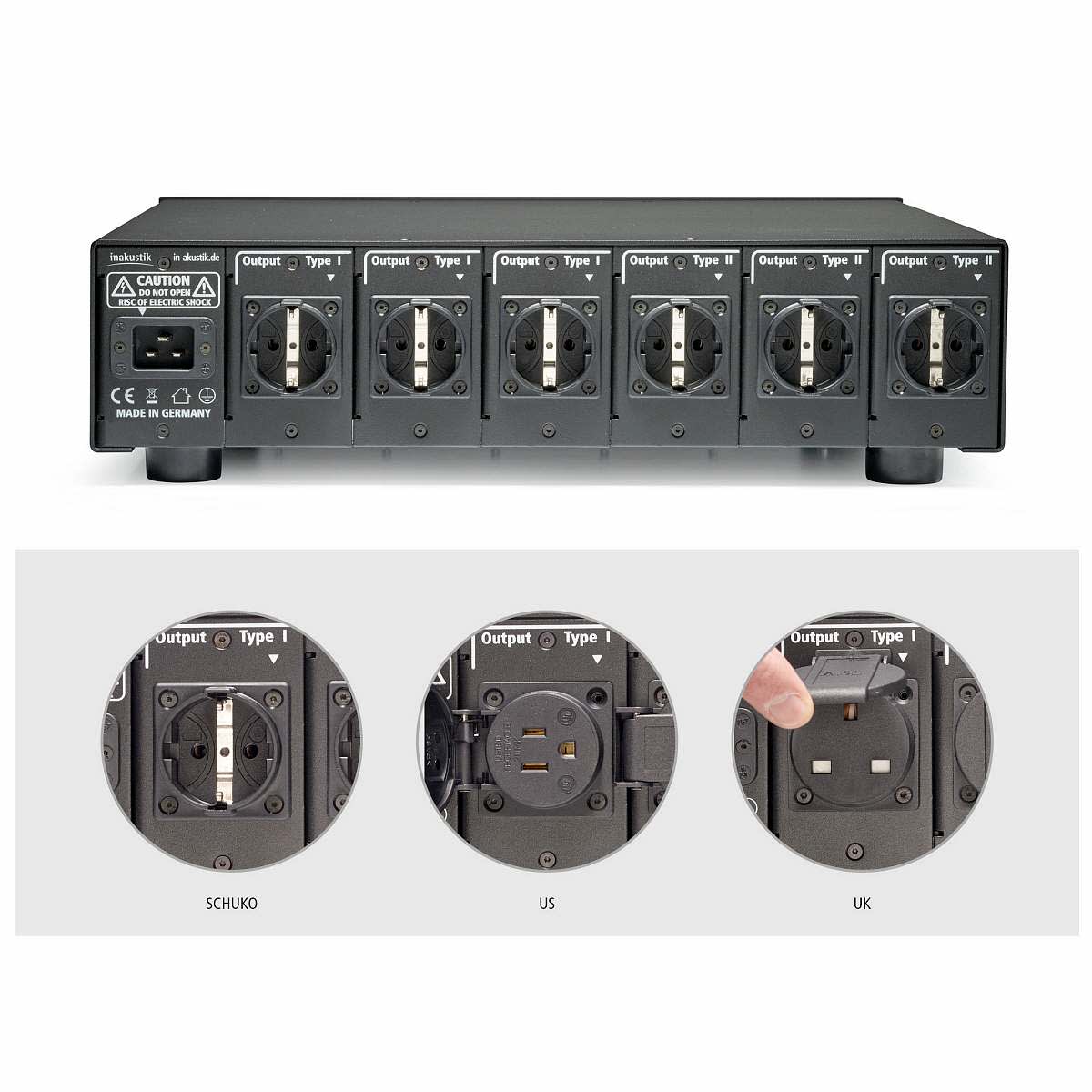

• Number of outputs: 6
• Mains connection: IEC C-20 socket
• Operating voltage: 230 VAC / 50-60Hz
• Max. Operating current: 16 amps (total)
• Max. connected load: 3680 watts (230VAC / 16A)
• Protection class I
• Dimensions: approx. 450 x 386 x 122mm
• Weight: approx. 15 kg (fully equipped)
• Scope of delivery: Power Station, standard mains cable, operating instructions
